Zero-Backlash Couplings
Torsionally stiff, backlash-free shaft couplings for servo, positioning and precision drives.
Zero-Backlash Couplings
Engineering support for selecting backlash-free couplings for servo motors, positioning axes, measuring systems and other precision drives.
Zero-Backlash Coupling Families

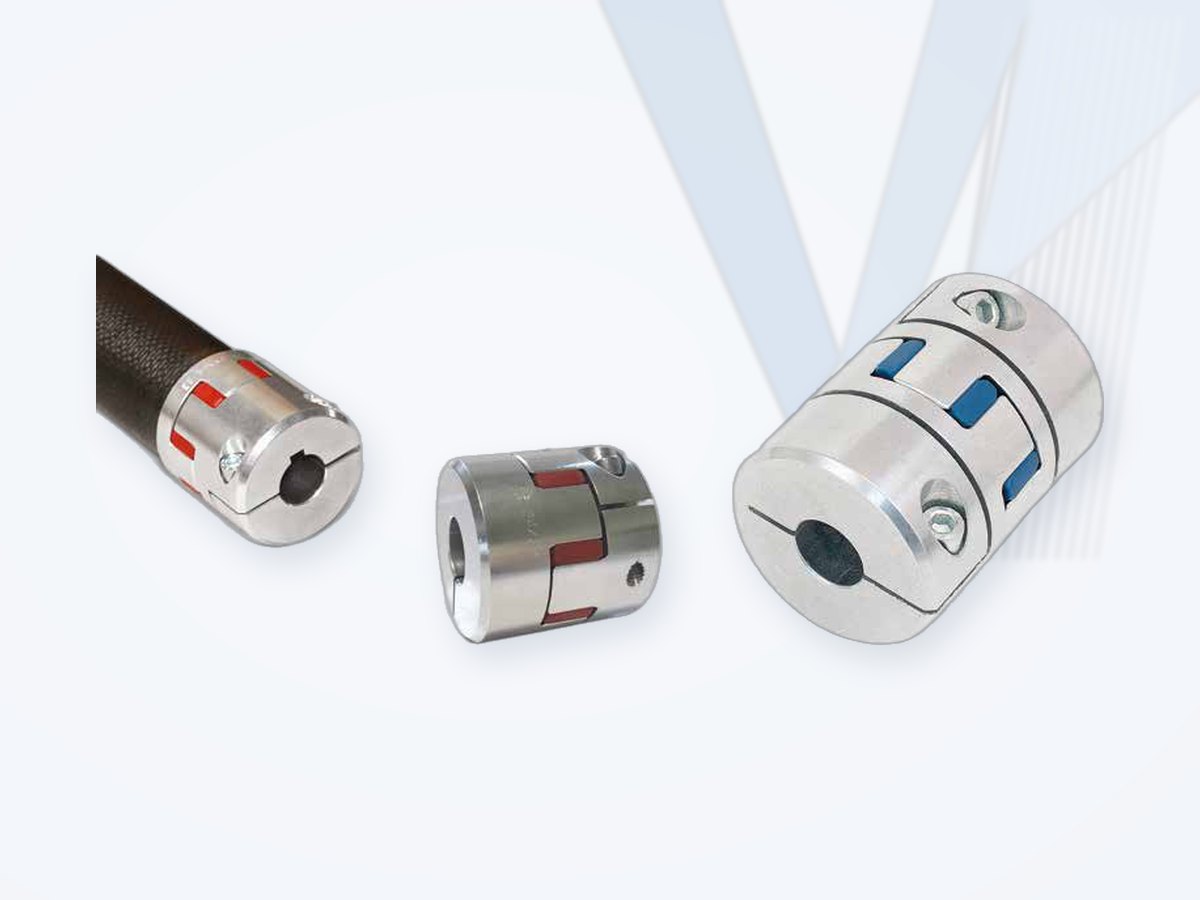

SIT TRASCO ES
Backlash-free elastomer (jaw-type) couplings with clamp-hub, shrink-disc, double-cardanic and intermediate-shaft executions; selection per DIN 740-2.
Request a Quote →

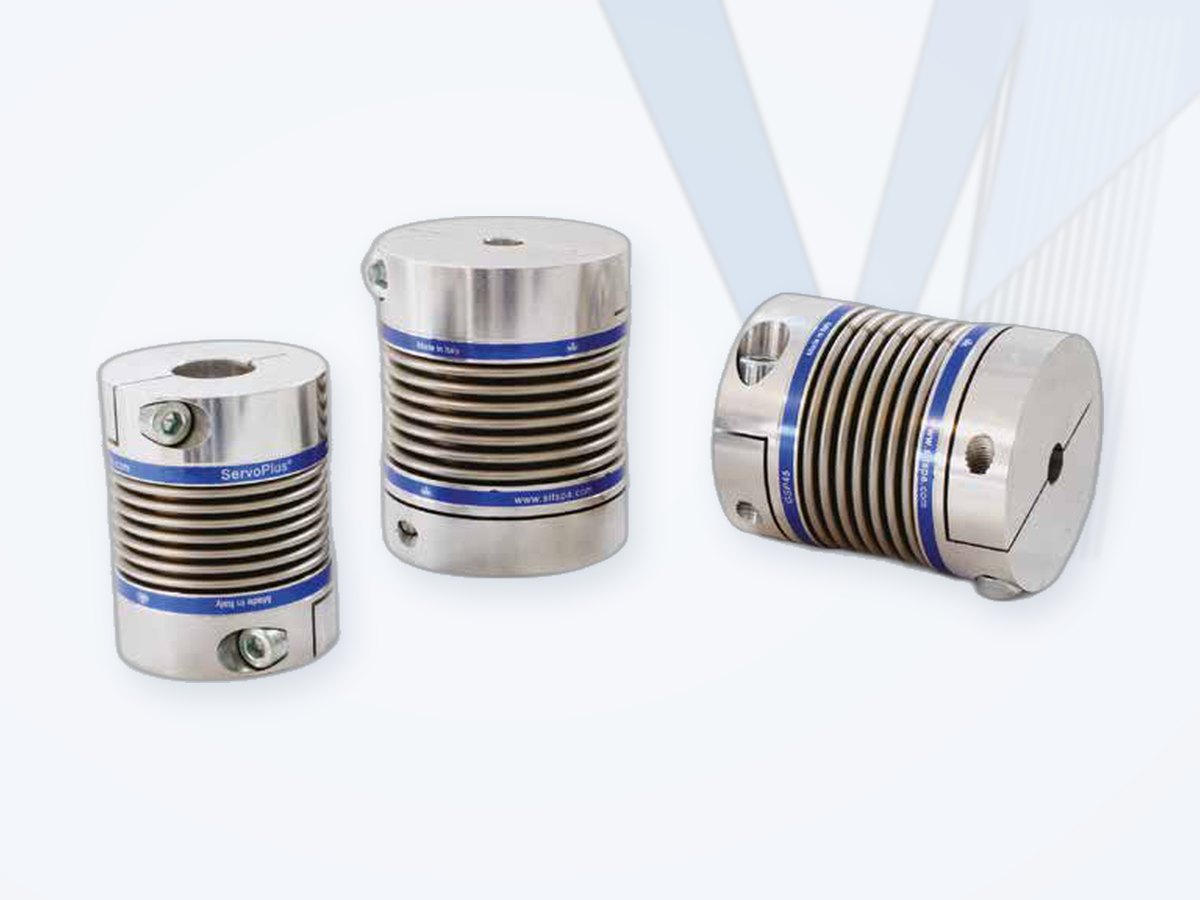

SIT SERVOPLUS
Stainless-steel bellows couplings with aluminium hubs for servo motor drives requiring high torsional rigidity and low inertia.
Request a Quote →

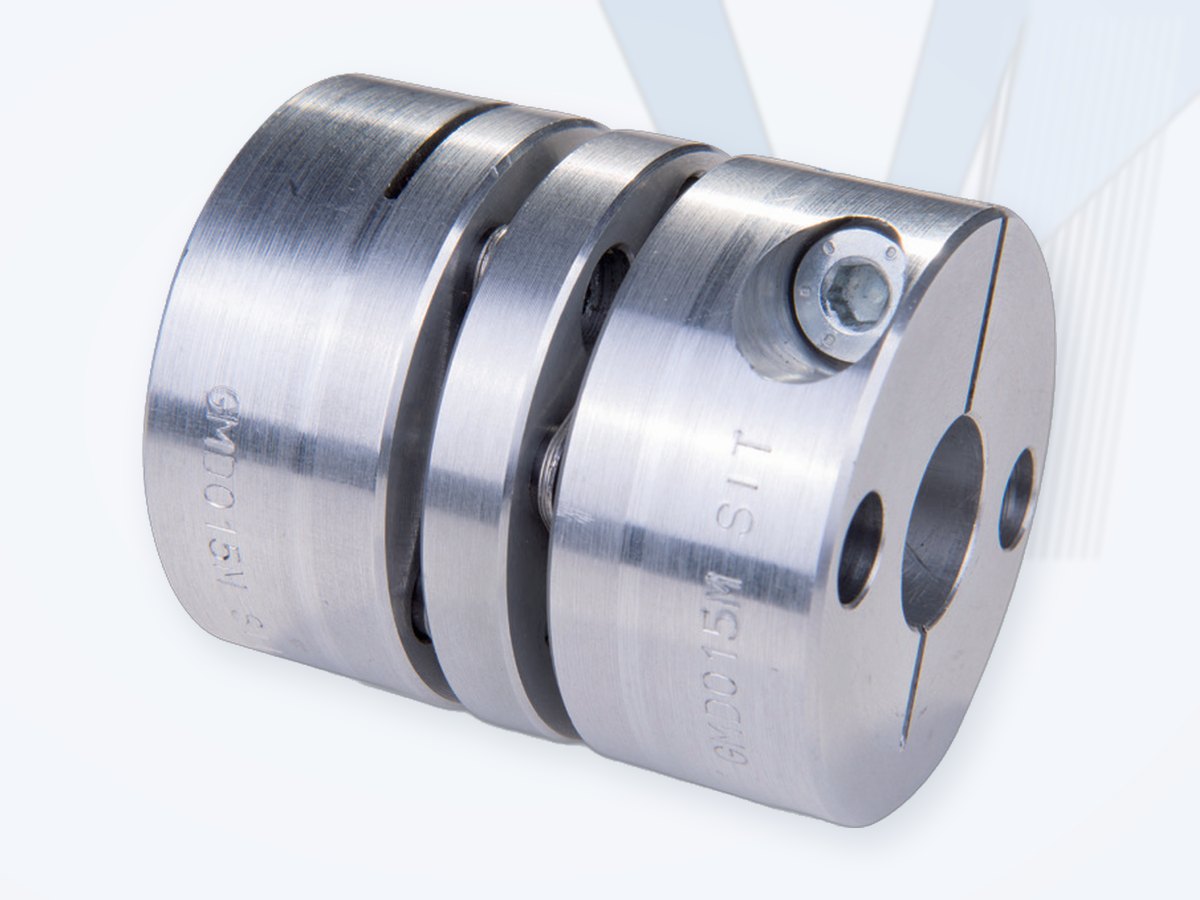

SIT SERVOMATE
Precision disc couplings for servo and positioning drives.
Request a Quote →What is a zero-backlash coupling?

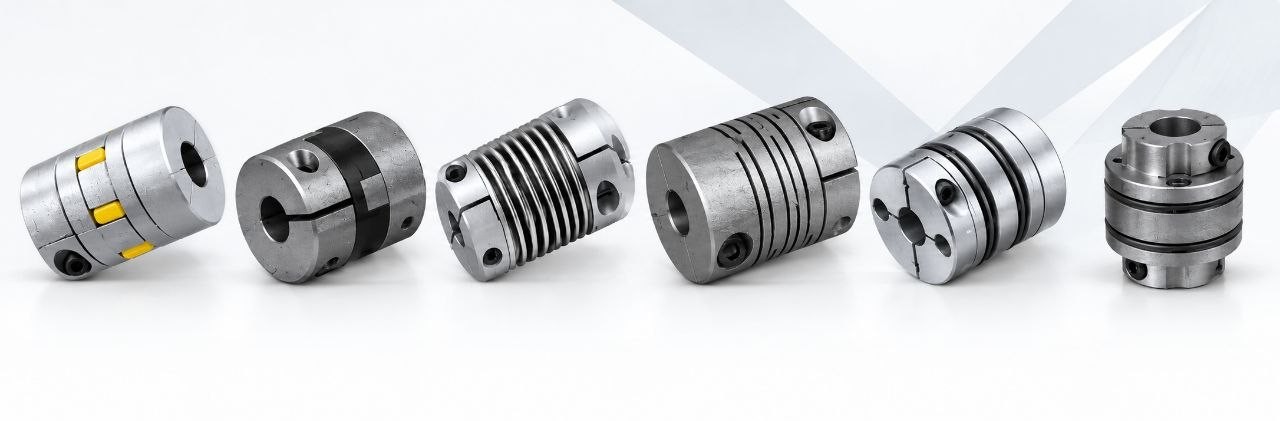

A zero-backlash coupling connects two shafts without rotational play between the driving and driven side, so that angular position is transmitted without lost motion. Typical designs include bellows couplings, metal disc (lamina) couplings, preloaded elastomer jaw couplings, beam couplings and other precision designs, each with different torsional stiffness, damping, misalignment and speed characteristics.
They are used where positioning accuracy and repeatability matter, for example on servo drives, ball screws, linear axes, encoders, machine tools, packaging and automation equipment.
Backlash-free behaviour, torsional stiffness and permissible misalignment are design- and size-specific and must be verified against the selected manufacturer's current data and the actual application.
Leading Manufacturers Worldwide
Well-known European, American and Asian (Japanese and Korean) manufacturers of zero-backlash couplings.
| Manufacturer | Country | Product focus |
|---|---|---|
| R+W | Germany | Precision bellows and elastomer couplings |
| KTR Systems | Germany | ROTEX, BoWex, RADEX-N couplings; CLAMPEX locking devices; brakes |
| mayr power transmission | Germany | Backlash-free couplings, safety brakes, torque limiters |
| SIT S.p.A. | Italy | Flexible, disc, gear and zero-backlash couplings; pulleys, belts, SIT-LOCK, taper bushes |
| Ruland | USA | Precision and zero-backlash couplings |
| Lovejoy (Timken) | USA | Jaw and elastomeric couplings |
| Miki Pulley | Japan | Precision couplings, electromagnetic brakes |
| NBK (Nabeya Bi-tech) | Japan | Precision and zero-backlash couplings |
| Tsubaki | Japan | Couplings, POWER-LOCK, backstops, chains |
Listed for market information only. Brand names belong to their owners; their mention does not imply that MECHATRIC represents, distributes for or is authorized by these manufacturers. Product availability and equivalents are confirmed per enquiry.
